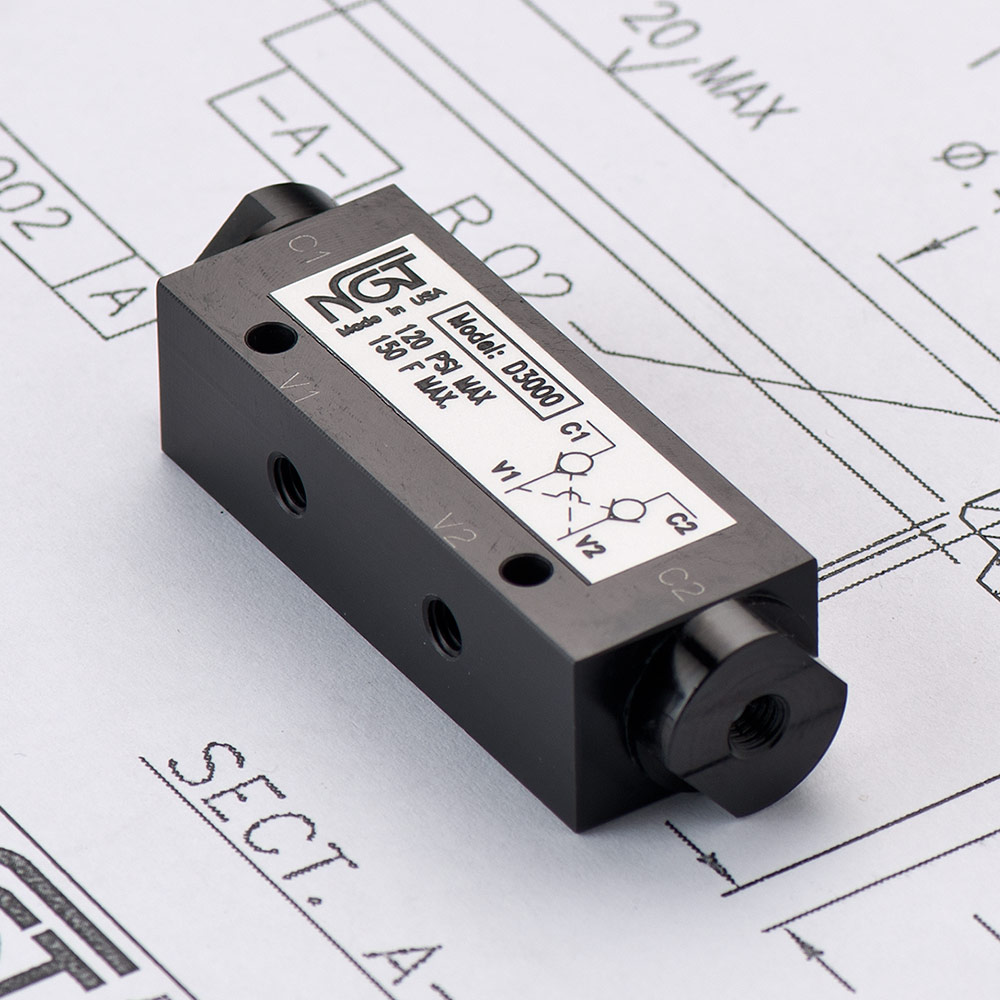

Basic Operation:

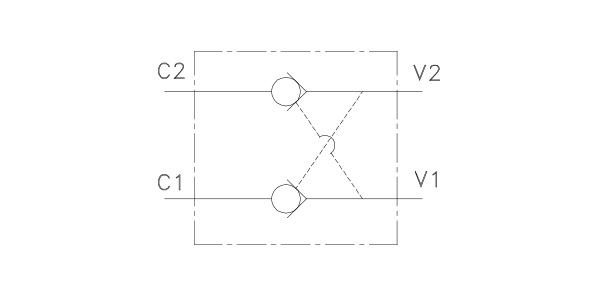

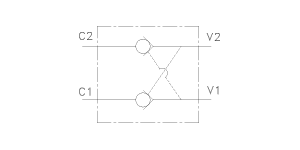

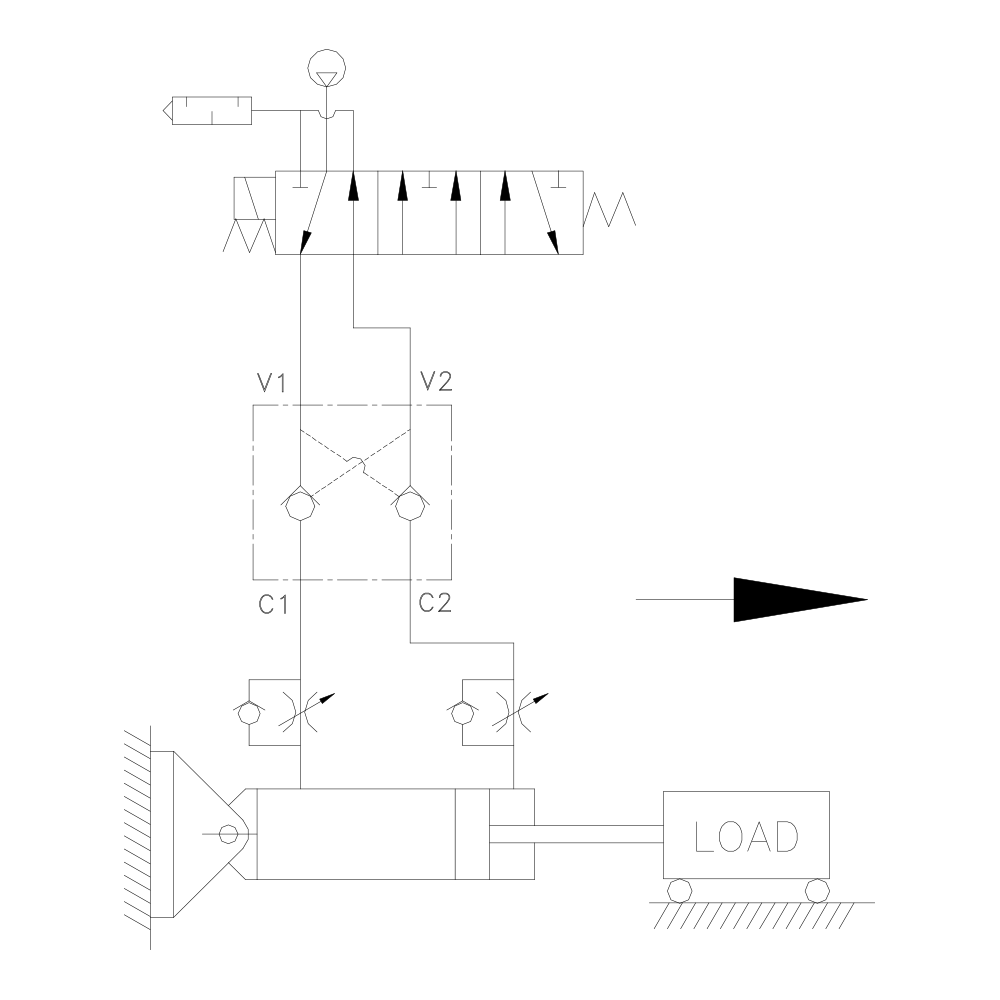

In the event of a pressure loss this unique valve maintains cylinder position by locking air in both cylinder ports. Eliminate drift due to leaky spool valves.

• Air Tight Locking
• Small Package
• Faster Stops
• Less Bounce

Operating Data:

Min / Max Pressure:

25 - 120 psi

Temp. Range:

30 - 150 F

Cycle Rate:

1 cyc./sec. max.

Flow Capacity (Cv):

.25

Cracking Pressure:

1-2 psi

Service:

Properly filtered dry air or lubricated air.

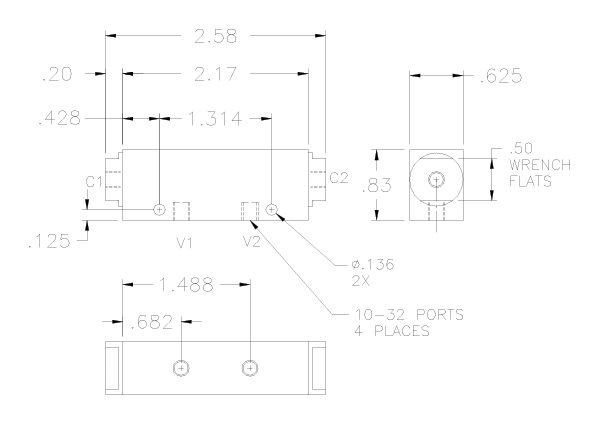

Product Specs: (Click to see a larger images)
