Pneumatic Cartridge Valve for a Manifold, Cv=1.2 with Flow Control
Patents Pending

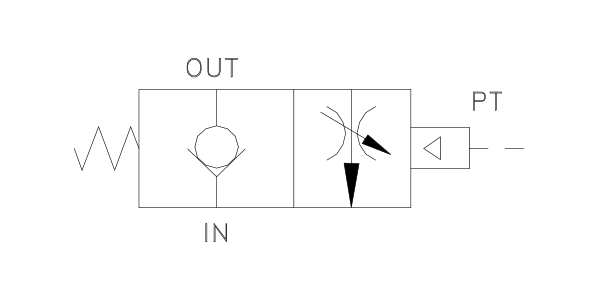

Basic Operation:
Lock your pneumatic device in position when a pressure drop or total loss of pressure occurs. Control the speed of the air device with the flow control.
- .000113 cc/min Leak Rate
- Inserts From One Side
- Easy Repair
- Small Size
- Metered Output to Input
Operating Data:
- Max. Pressure:
- 120 psi
- Min. Pilot Pressure:
- 30 psi @ 80 psi
- Leak Rate:
- .000113 cubic cc/min
- Temp. Range:
- 30 - 150 F
- Cycle Rate:
- 1 cyc./sec. max.
- Max. Flow Capacity (Cv):
- 1.2
- Cracking Pressure:
- 2 - 3 psi
- Service:
- Properly filtered dry air or lubricated air.

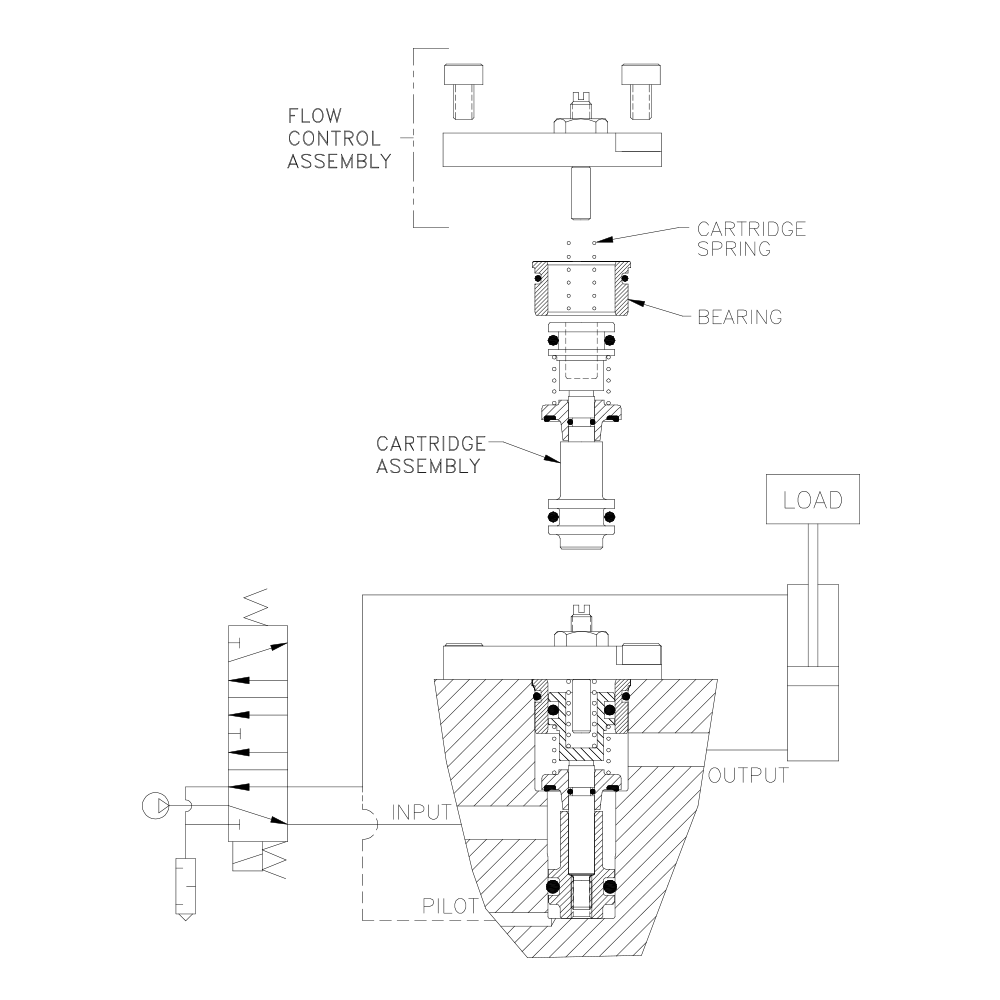

| Description | Model |
|---|---|
| Cartridge Asm., Bearing, Cartridge Spring & Manual Release Asm. | BC1MNAS-2 |
| Cartridge Asm., Bearing & Cartridge Spring | BC1MNB |
| Cartridge Asm. & Cartridge Spring | BC1MN |

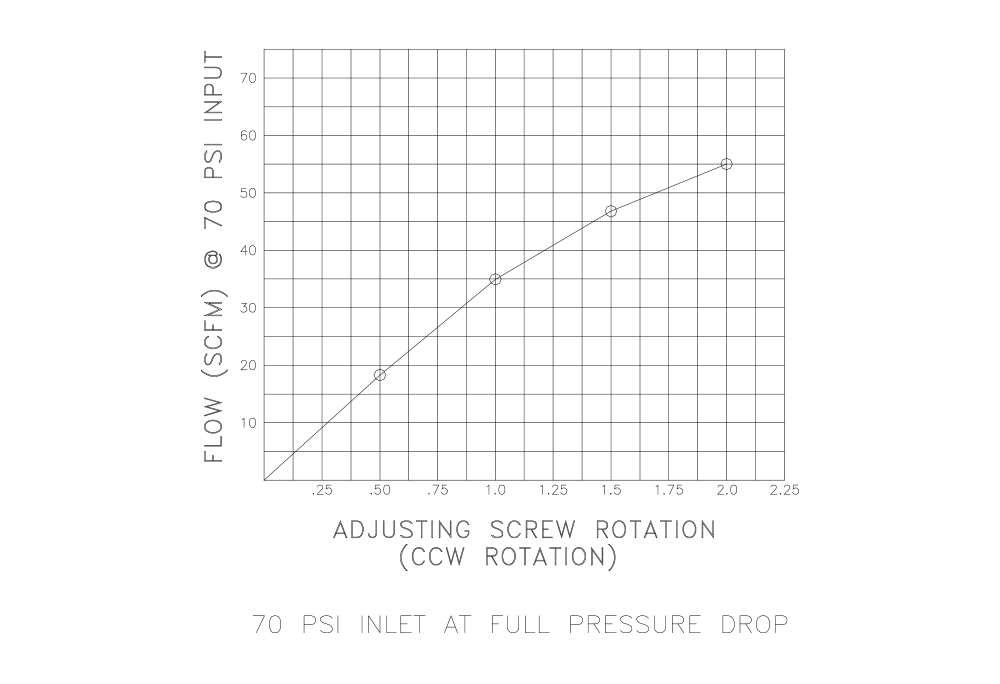

| No. of Turns | Equivalent Dia (in.) |
|---|---|
| .5 | .12 |
| 1.0 | .17 |
| 1.5 | .21 |
| 2.0 | .24 |
| 2.5 | .27 |
| 3.0 | .30 |

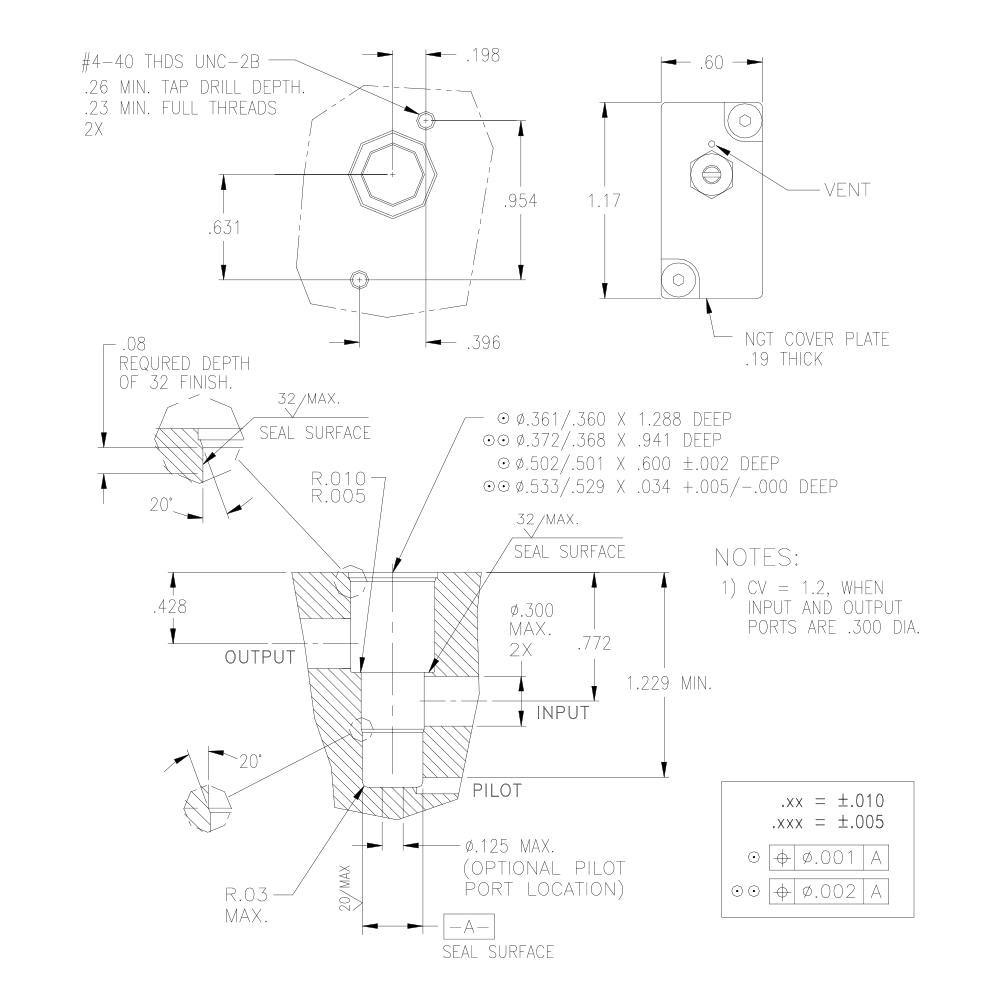

Product Specs: (Click to see a larger images)
