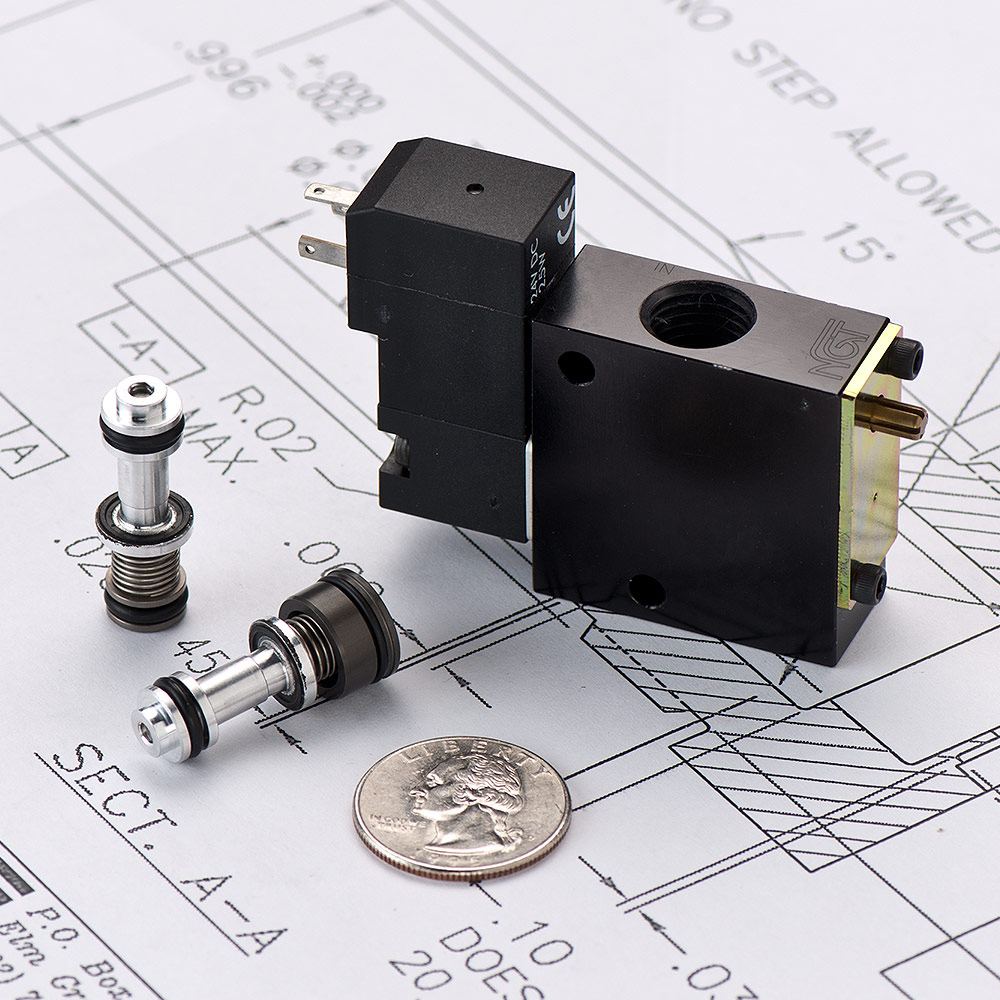

Pneumatic Cartridge Valve for a Manifold, Cv=1.2 with Manual Release

Patents Pending

Basic Operation:

Lock your pneumatic device in position when a pressure drop or total loss of pressure occurs. Insert a cartridge assembly into a machined cavity and attach a cover for easy assembly. The manual release exhausts trapped air to atmosphere.

  • .000113 cc/min Leak Rate
  • Inserts From One Side
  • Easy Repair
  • Small Size
  • Manual Release to Atm.

Operating Data:

Max. Pressure:
120 psi
Min. Pilot Pressure:
30 psi @ 80 psi
Leak Rate:
.000113 cubic cc/min
Temp. Range:
30 - 150 F
Cycle Rate:
1 cyc./sec. max.
Max. Flow Capacity (Cv):
Cracking Pressure:
2 - 3 psi
Properly filtered dry air or lubricated air.

Description Model
Cartridge Asm., Bearing, Cartridge Spring & Manual Release Asm. BC1MNAS-1
Cartridge Asm., Bearing & Cartridge Spring BC1MNB
Cartridge Asm. & Cartridge Spring BC1MN

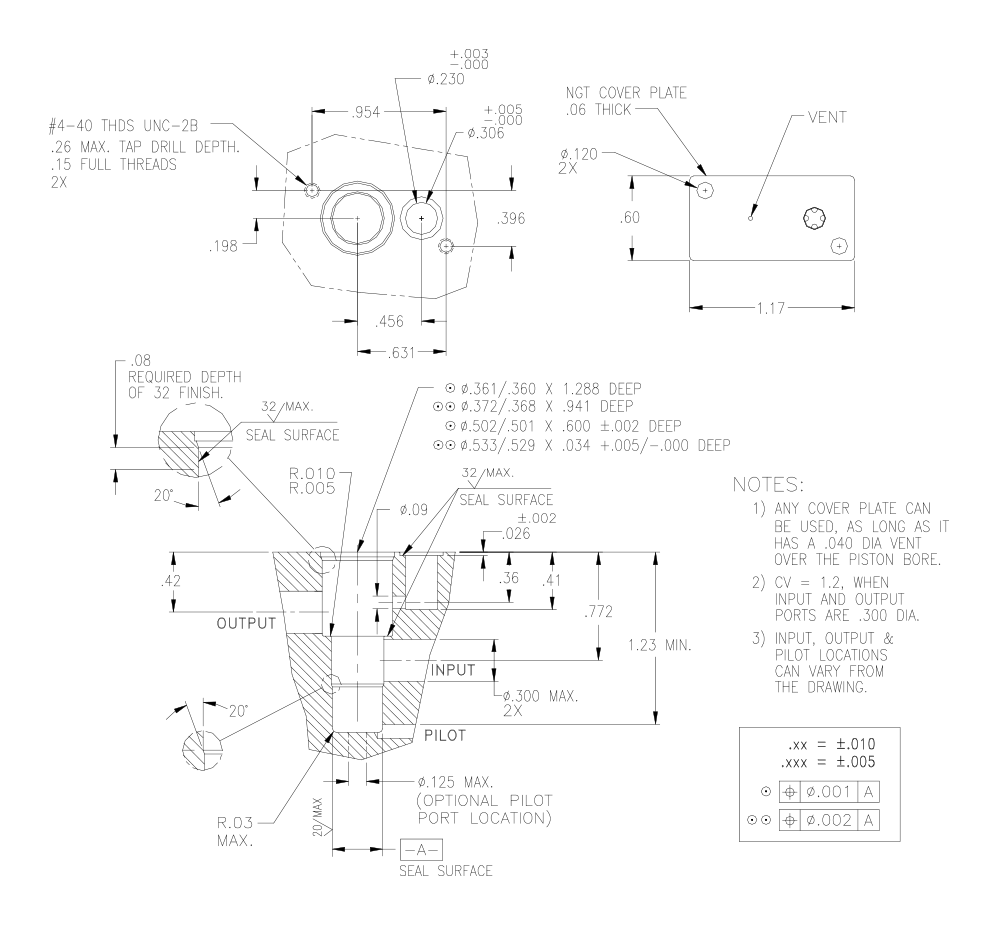

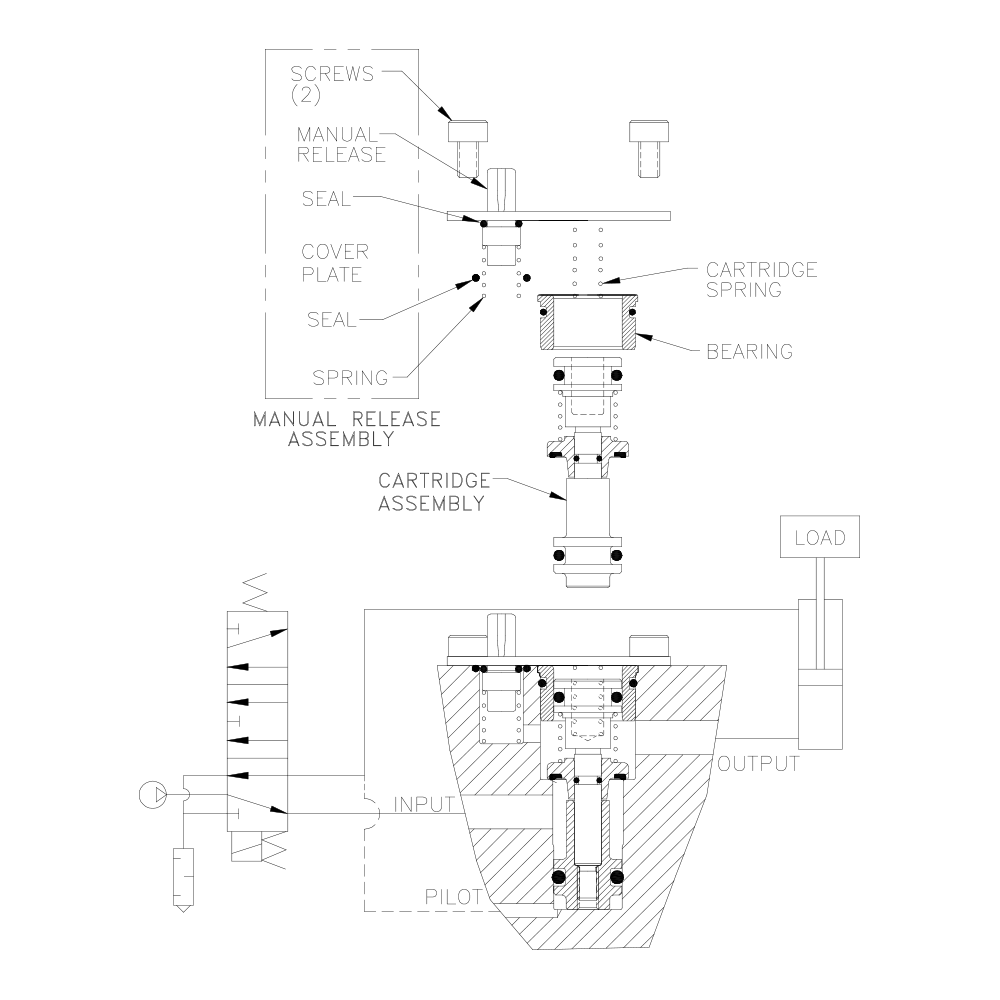

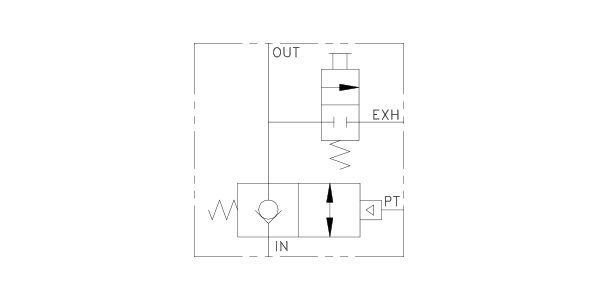

Product Specs: (Click to see a larger images)
