Pneumatic Cartridge Valve for a Manifold, Cv=2.6 with Flow Control
Patents Pending

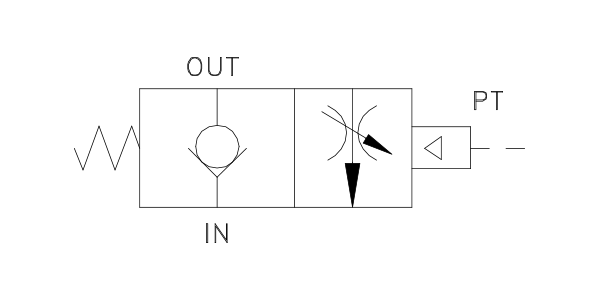

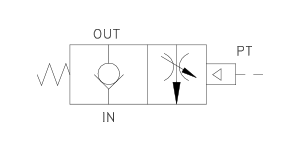

Basic Operation:

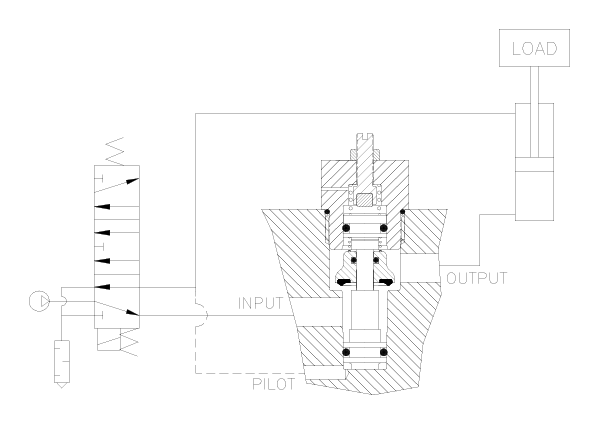

Lock your pneumatic device in position when a pressure drop or total loss of pressure occurs. Air flow is metered from the Output to the Input port.
- High Flow
- Flow Control
- .000113 cc/min Leak Rate
- Inserts From One Side
- Easy Repair
Operating Data:
- Max. Pressure:
- 150 psi
- Min. Pilot Pressure:
- 40 psi
25 psi (K18 suffix) - Leak Rate:
- .000113 cubic cc/min
- Temp. Range:
- -20 - 150 F (Nitrile)
- Cycle Rate:
- 1 cyc./sec. max.
- Max. Flow Capacity (Cv):
- 2.6
- Cracking Pressure:
- 1 - 3 psi
- Service:
- Properly filtered dry air or lubricated air.
| Description | Model |
|---|---|
| Cartridge, Adjustable Cap & Spring | BC4MNFL |
| Cartridge, Adjustable Cap & Low Pressure Spring | BC4MNFLK18 |
| No. of Turns | Equivalent Dia (in.) |
|---|---|
| .25 | .15 |
| .50 | .21 |
| .75 | .26 |
| 1.0 | .30 |
| 1.25 | .34 |
| 1.50 | .37 |
| 1.75 | .40 |

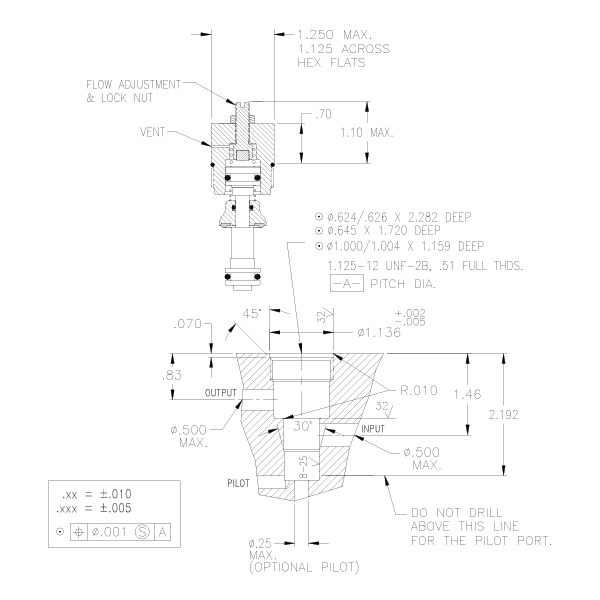

Product Specs: (Click to see a larger images)
