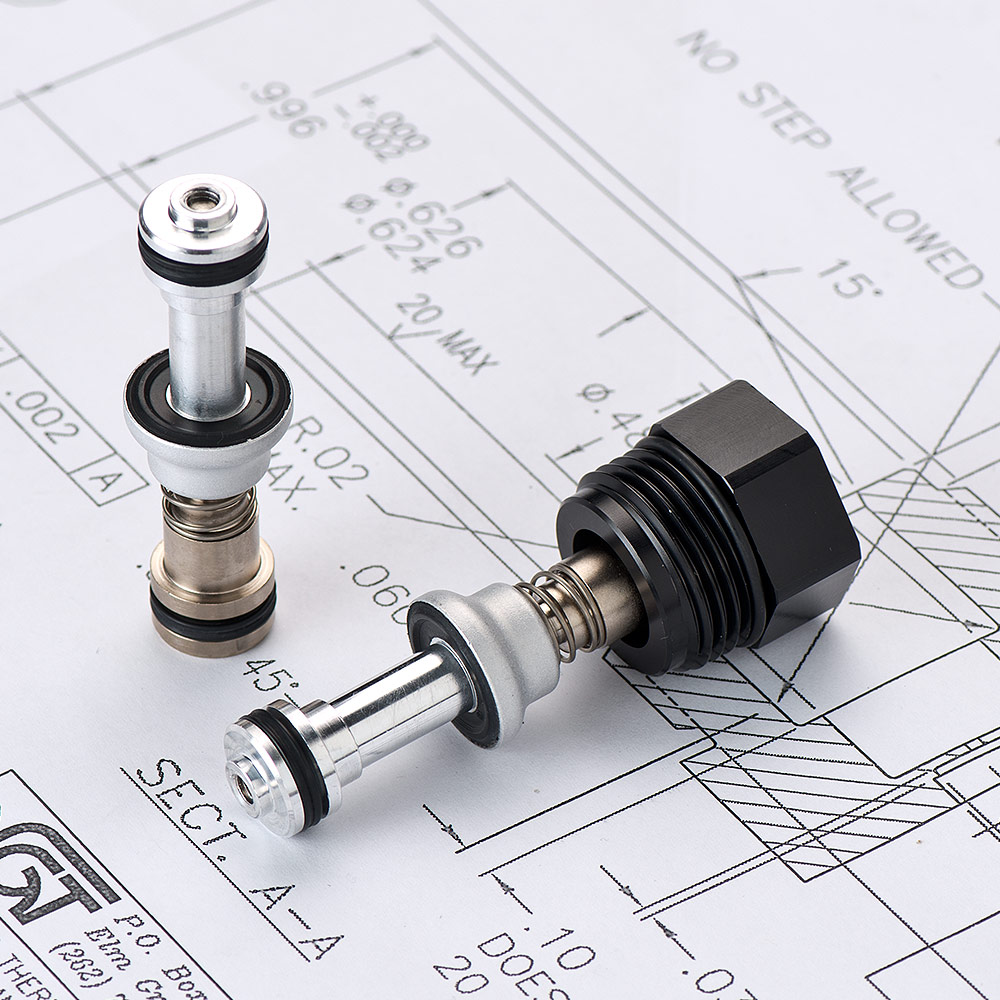

Pneumatic Cartridge Valve for a Manifold, Cv=4

Patents Pending


Basic Operation:


Lock your pneumatic device in position when a pressure drop or total loss of pressure occurs.

  • High Flow
  • High & Low Temp
  • .000113 cc/min Leak Rate
  • Inserts From One Side
  • Easy Repair




Operating Data:


Max. Pressure:
150 psi
Min. Pilot Pressure:
40 psi
25 psi (see table)
Leak Rate:
.000113 cubic cc/min
Temp. Range:
-20 to 150 F (Nitrile)
30 to 350 F (FKM)
-40 to 150 F (EPDM)
Cycle Rate:
1 cyc./sec. max.
Max. Flow Capacity (Cv):
4.0
Cracking Pressure:
1 - 3 psi
Service:
Properly filtered dry air or lubricated air.


Description Standard Low Temp* High Temp
Cartridge, End Cap & Spring BC5MNAS BC5MNAST40 BC5MNASV
Cartridge & Spring BC5MN BC5MNT40 BC5MNV
*No petroleum based lubricants. Comes lubricated with a silicone based lubricant.
Add (-K18) to the model number for a lower pilot pressure (Ex: BC5MNAS-K18).

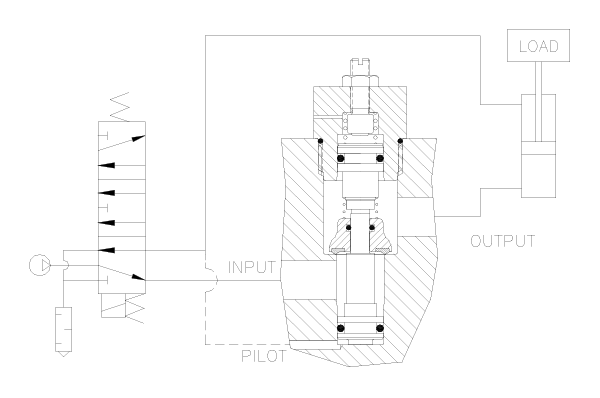

Product Specs: (Click to see a larger images)
