Basic Operation:

Normally open valve can be mounted directly to a manifold, air cylinder or any pneumatic device with a flat surface. Use where air tight operation is required. Pilot to close the valve. Internal check allows free frow in one direction.

• Direct Mount
• .000522 cc/min Leak Rate
• High Flow
• Air Pilot to Close
• Checks in One Direction

Operating Data:

Max. Pressure:

120 psi

Min. Pilot to Close:

45 psi

Leak Rate:

.0000522 cubic cc/min

Temp. Range:

30 - 150 F

Cycle Rate:

1 cyc./sec. max.

Flow Capacity (Cv):

2.6

Cracking Pressure:

1 - 2 psi

Service:

Properly filtered dry air or lubricated air.

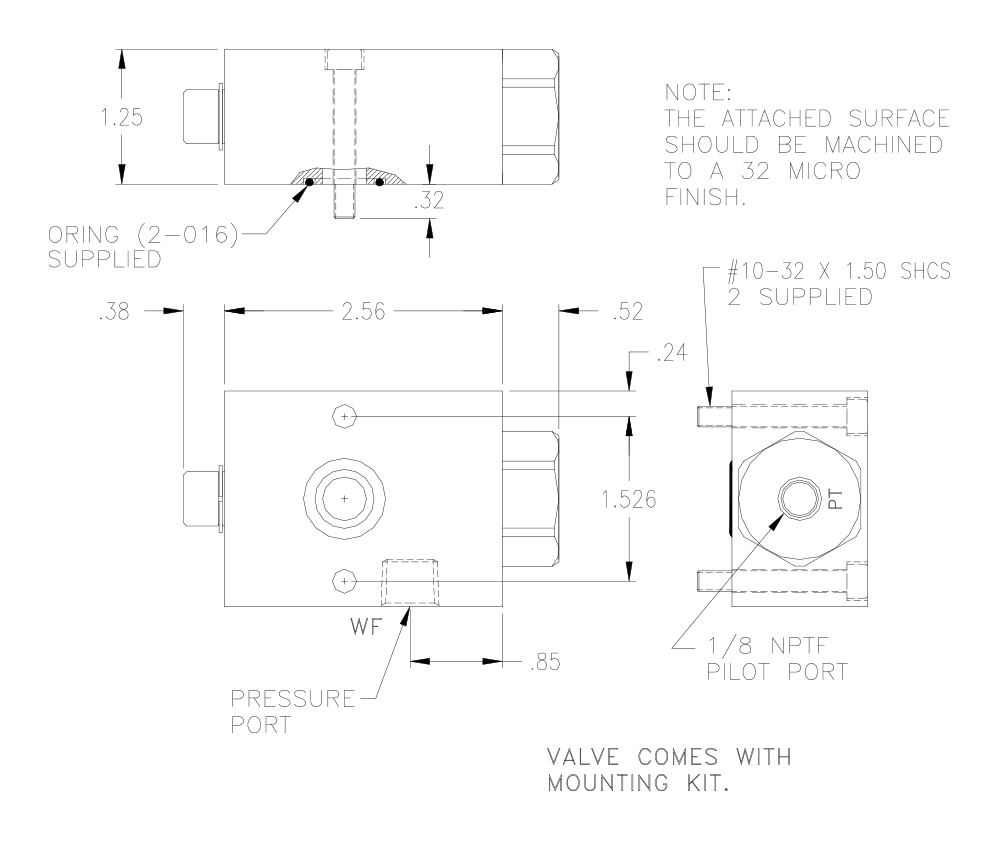

Product Specs: (Click to see a larger images)
